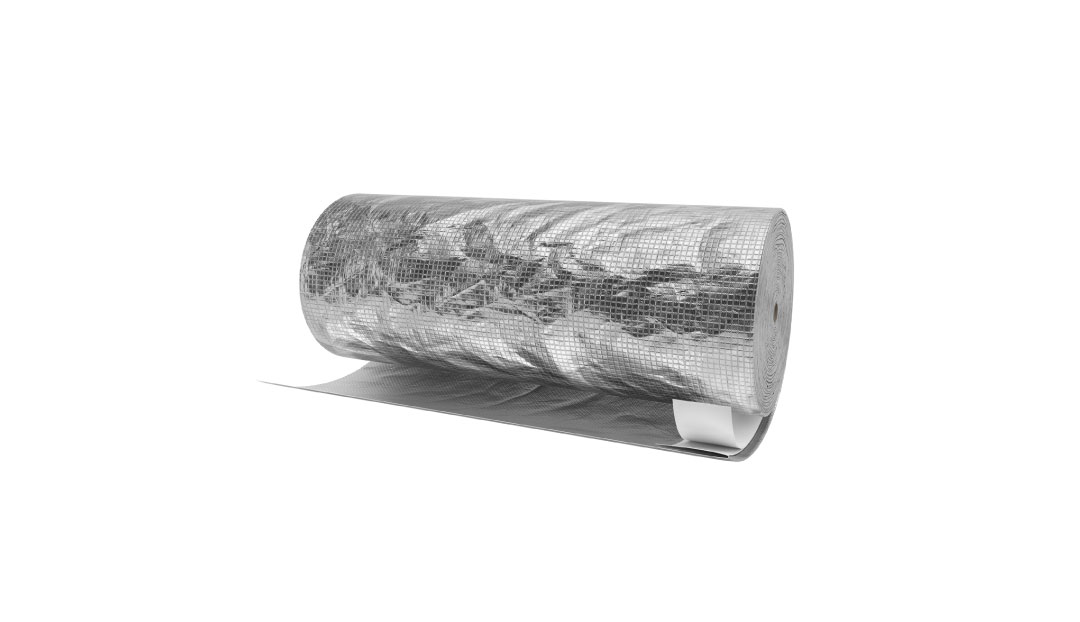

Reflextherm
Non-flammable and insulating breather membrane.
It is used for roofs and facades, in new builds and refurbishments.
- Applications :

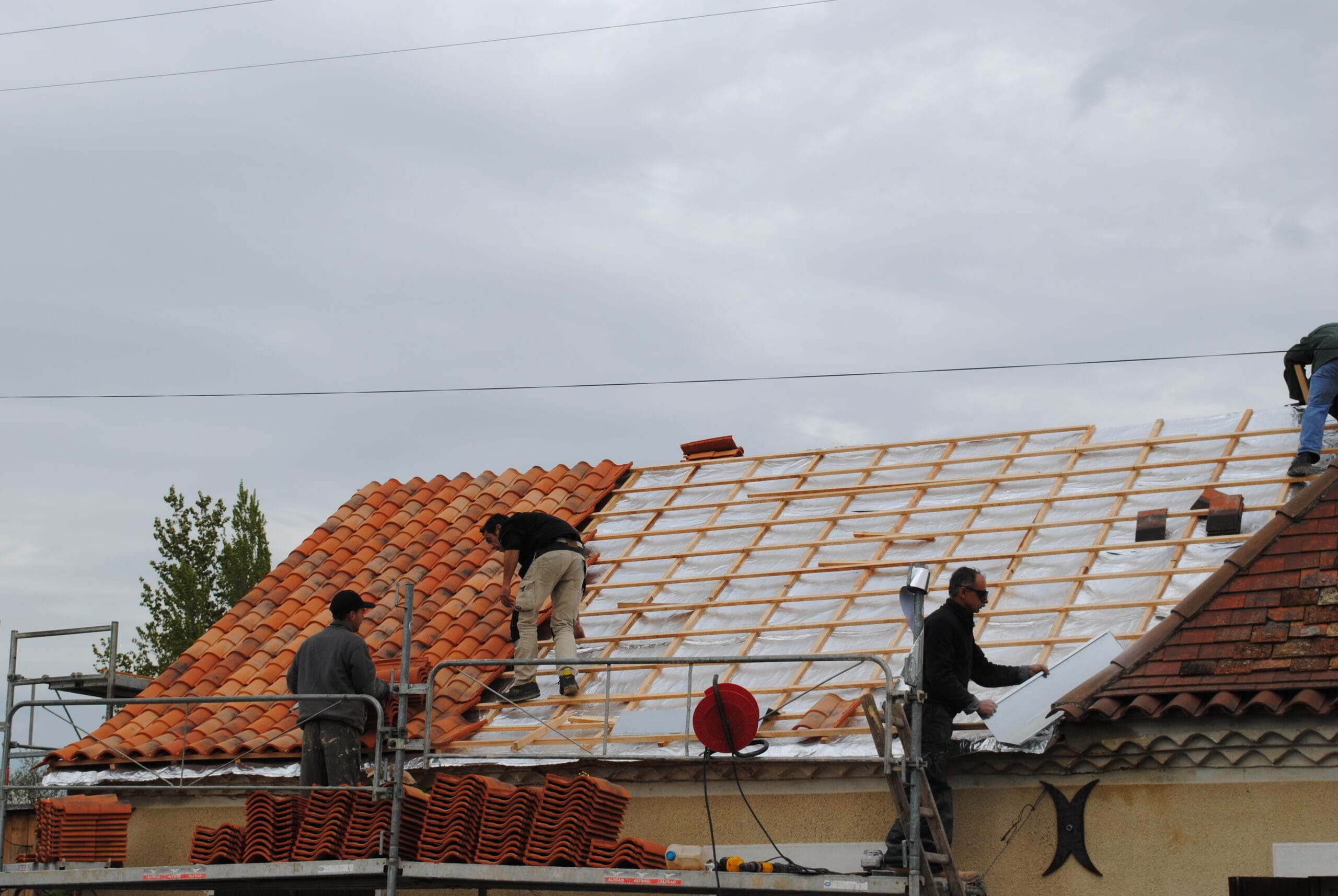

- Roof thermal refurbishments
- Facade thermal refurbishments
- Timber frame constructions
- Public buildings
- Off-site constructions
- Metal frame constructions
Benefits
- Non-flammable (B-s1,d0 according to EN 13501-1)
- Thermal comfort during summer and winter (reflective insulation)
- Vapour permeable
- Improves airtightness
- High mechanical resistance
Technical datas
| Reaction to fire | B-s1,d0 | |
| Thermal resistance | 1,5 m².K/W (with 2 non ventilated air gaps) | |
| Thermal conductivity (ʎ) | 0,029 W/mK | |
| Water vapour permeance (Sd Value) | 0,06 m | |
| Resistance to vapour penetration | 0,3 MN.s/g | |
| Water vapour diffusion coefficient (μ) | 7 | |
| Air tightness | 0,077 m³/(hxm²x50 Pa) | |
| UV resistance (without cladding) | 9 months | |
| UV resistance* (50% and 50 mm joints) | Permanent (5 000 hours tested) | |
| Temperature range | -36°C to 90°C | |
| Water penetration | W1 | |
| Material | Micro-perforated aluminum foils Functional film Glass fibre fabric E glass needle mat Integrated adhesive tape |
|
| Thickness | 6 mm | |
| Mass per unit area | 878 g/m² | |
| Width | 1,12 m | |
| Length | 25 m | |
| Total m² | 27 m² | |
| Weight | 24 kg | |
| Packaging | 12 rolls/pallet (324 m²) |
* For any other project conditions, contact our technical department.
